DALLARA X 1/9 1600 Gr.5

SPECIFICATIONS
YEAR: 1980
KILOMETERS: -
POWER: 226 HP
DISPLACEMENT: 1600 cm3
FUEL: PETROL/PETROLEUM
GEARBOX: Manual
CYLINDERS: 4
EXTERNAL/INTERNAL: White

- Sole owner since construction in Dallara Automobili (1980)

- 12/12 chassis (maximum evolution certified by Engineer Dallara - 2023)

- Last example built (3rd of only 3 with Dallara 1600 mechanics)

- Dallara & 5-speed Colotti gearbox + RM and front gearbox

- Colotti "braking torque" differential

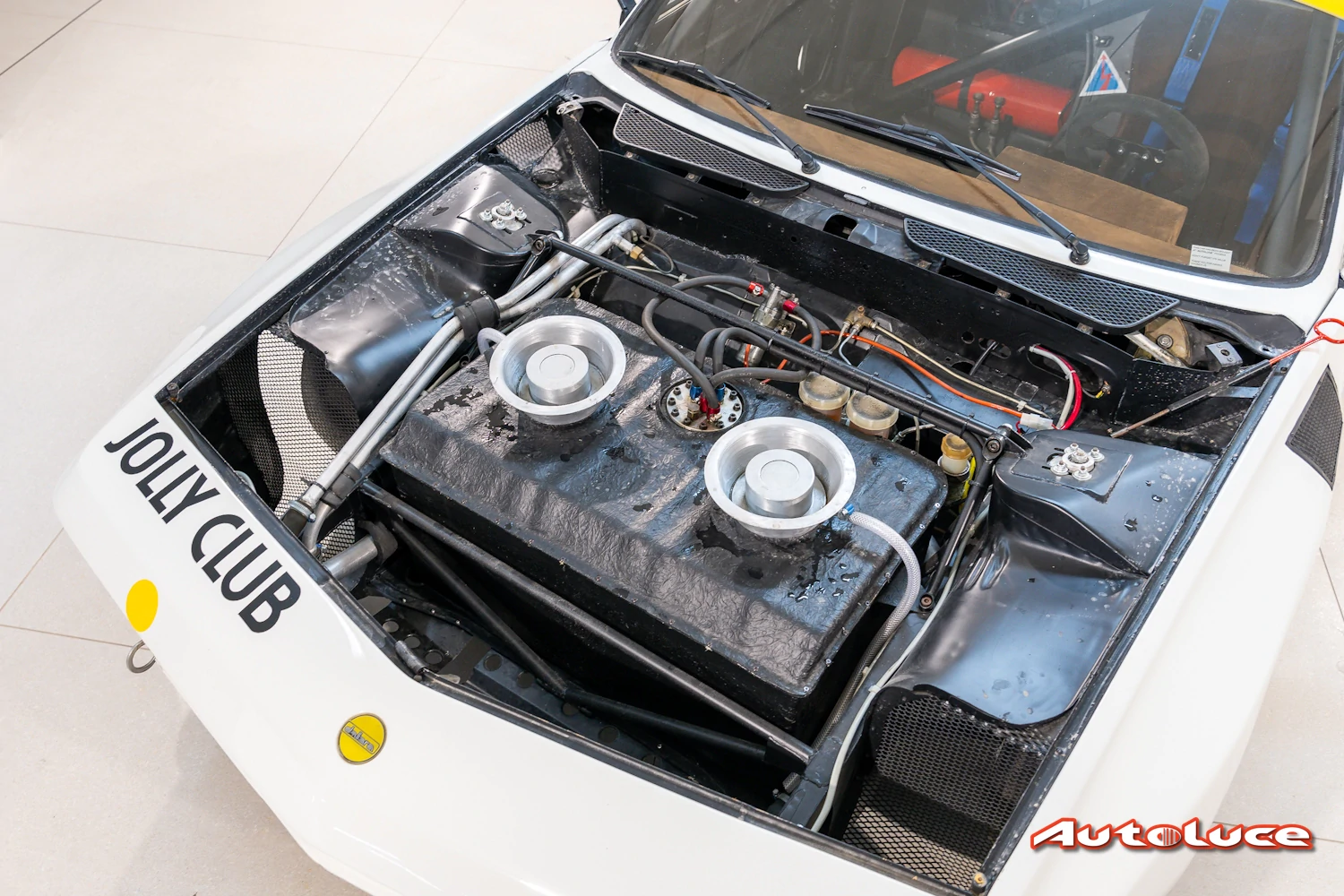

- Dallara twin cam head with 16 valves, connecting rods, pistons and crankshaft

- Dallara "dry sump" lubrication

- Kugelfischer mechanical injection

- Front/rear fenders with increased width in initial construction

- Removal of the ailerons with new fixings compared to the previous chassis

- Only 6 races held in 1980/81: 5 climbs and 8 laps at the 1000 km of Monza

- Impeccably preserved by the sole owner and never restored

- Maintained in perfect mechanical and chassis functionality

- Set of 20 Colotti gears (final from 160 to 260 km/h) supplied

- Set of shims and springs for calibrating the braking torque differential

Total number of races played 1980 - 1981:

Amalfi - Agerola: 8th overall / 1st Class 1600 Group 5 (uphill)
Abriola - Sellata: 9th overall / 1st class 1600 Group 5 (uphill)
Ascoli - Colle San Marco: 10th overall / 1st class 1600 Group 5 (time trial)
Svolte di Popoli: 11th overall / 1st class 1600 Group 5 (time trial)
1000 Km of Monza (World Endurance Championship): DNF - 8th lap
Abriola - Sellata: 7th overall / 1st class 1600 / 1st group 5 (climb)
(European Mountain Championship)

Documentation accompanying specimen no. 12/12

- Order confirmation of the car sent by Dallara Automobili (1979)

- Pirelli tank certificate and assembly declaration (Dallara 1979)

- Engine bench test test report (Dallara Automobili 1980)

- Purchase invoice of the Bertone body (Dallara Automobili 1980)

- Relationship between car weights and spring loads (Eibach Federn 1980)

- Relationship between differential and "braking torque" (Colotti transmissions 1980)

- Diagram (Rpm - Kp/H) ratios n. 25 (Colotti broadcasts 1980)

- Vehicle homologation sheet in Groups 3 and 4 (CSAI & FIA 1980)

- Vehicle construction declaration 12/1980 (Dallara Automobili 1994)

- Declaration of conformity of the roll bar with FISA 1980 regulations (Dallara)

- Chassis 12 exemplary specifications" certification (Eng. Dallara 2023)
